Scattering: Mie Phase Function Tutorial ​

Introduction ​

This tutorial shows the standard Mie workflow in vSmartMOM.Scattering:

  1. Define an aerosol size distribution and refractive index

  2. Build a MieModel (NAI2 in this example)

  3. Compute aerosol optical properties (GreekCoefs, ω̃, k, fᵗ)

  4. Reconstruct phase matrix elements on a custom angular grid

  5. Run optional AD and cross-section convenience routines

Load packages ​

julia
using vSmartMOM.Scattering
using Distributions
using FastGaussQuadrature
using Parameters
using CairoMakie

Define aerosol properties ​

julia
rₘ = 0.3                 # median radius [μm]
σ = 2.0                  # geometric stddev [-]
nᵣ = 1.3                 # real refractive index
nᵢ = 0.001               # imaginary refractive index (use positive convention)
r_max = 30.0             # upper integration radius [μm]
nquad_radius = 1500      # size quadrature points

size_distribution = LogNormal(log(rₘ), log(σ))
aero = Aerosol(size_distribution, nᵣ, nᵢ)

Create model settings ​

julia
λ = 0.55                               # wavelength [μm]
polarization_type = Stokes_IQUV()
l_max = 20
Δ_angle = 2.0
truncation_type = δBGE(l_max, Δ_angle)

model_NAI2 = make_mie_model(
    NAI2(),
    aero,
    λ,
    polarization_type,
    truncation_type,
    r_max,
    nquad_radius,
)

Compute aerosol optical properties ​

julia
aerosol_optics_NAI2 = compute_aerosol_optical_properties(model_NAI2)

println("ω̃ = ", aerosol_optics_NAI2.ω̃)
println("k  = ", aerosol_optics_NAI2.k)
println("fᵗ = ", aerosol_optics_NAI2.fᵗ)

Inspect Greek coefficients ​

julia
(; α, β, γ, δ, ϵ, ζ) = aerosol_optics_NAI2.greek_coefs

fig = Figure(size=(700, 700))
coef_names = ["α", "β", "γ", "δ", "ϵ", "ζ"]
coef_data  = [α, β, γ, δ, ϵ, ζ]
for i in 1:6
    row, col = fldmod1(i, 2)
    ax = Axis(fig[row, col], title=coef_names[i], xlabel="l")
    lines!(ax, coef_data[i])
    xlims!(ax, 0, 100)
end
fig

The docs build renders these coefficients as an interactive Plotly panel so individual Fourier coefficients can be toggled on and off.

These coefficients are Fourier-space quantities used by RT kernels. Reconstruct angle-dependent phase-matrix elements only when needed.

Reconstruct phase matrix elements ​

julia
μ_quad, _ = gausslegendre(500)
scattering_matrix = reconstruct_phase(aerosol_optics_NAI2.greek_coefs, μ_quad)
(; f₁₁, f₁₂, f₂₂, f₃₃, f₃₄, f₄₄) = scattering_matrix

Plot the phase function and degree of linear polarization as a function of scattering angle:

julia
Θ = rad2deg.(acos.(μ_quad))

fig = Figure(size=(700, 600))
ax1 = Axis(fig[1,1], ylabel="f₁₁", yscale=log10)
lines!(ax1, Θ, f₁₁)

ax2 = Axis(fig[2,1], ylabel="f₁₂ / f₁₁", xlabel="Scattering angle (°)")
lines!(ax2, Θ, f₁₂ ./ f₁₁)
fig

The forward peak in f₁₁ is characteristic of Mie scattering by particles larger than the wavelength. The f₁₂/f₁₁ ratio gives the degree of linear polarization for unpolarized incident light.

The docs build also writes a standalone Plotly version of this phase-function preview. It keeps the log-scaled f₁₁ panel and the polarization-ratio panel interactive on the rendered documentation page.

Polar view of the phase function and polarization ratio:

julia
fig = Figure(size=(800, 400))
θ_rad = acos.(μ_quad)
θ_full = vcat(θ_rad, .-reverse(θ_rad))
f₁₁_full = vcat(f₁₁, reverse(f₁₁))
ratio = f₁₂ ./ f₁₁
ratio_full = vcat(abs.(ratio), reverse(abs.(ratio)))

ax1 = PolarAxis(fig[1,1], title="log₁₀(f₁₁)")
lines!(ax1, θ_full, log10.(f₁₁_full))

ax2 = PolarAxis(fig[1,2], title="|f₁₂/f₁₁|")
lines!(ax2, θ_full, ratio_full)
fig

AD mode ​

autodiff=true returns one AerosolOptics object. The Jacobian is stored in derivs with columns corresponding to: [rₘ, σ, nᵣ, nᵢ].

julia
aerosol_optics_ad = compute_aerosol_optical_properties(model_NAI2; autodiff=true)
println("AD derivs size: ", size(aerosol_optics_ad.derivs))

Convenience APIs for cross-sections and scalar phase function ​

julia
μ_pf, w_μ_pf, p11, C_ext, C_sca, g = phase_function(aero, λ, r_max, nquad_radius)
println("phase_function C_ext = ", C_ext, ", C_sca = ", C_sca, ", g = ", g)

XS_ext, XS_sca, Cext_eff, Csca_eff = compute_aerosol_XS(aero, λ, r_max, nquad_radius)
println("compute_aerosol_XS XS_ext = ", XS_ext, ", XS_sca = ", XS_sca)
println("compute_aerosol_XS Cext_eff = ", Cext_eff, ", Csca_eff = ", Csca_eff)

Optional PCW workflow ​

If you want to run the PCW decomposition directly, precompute (or load) Wigner tables:

julia
N_max = 120
wigner_A, wigner_B = compute_wigner_values(N_max)   # can be expensive
model_PCW = make_mie_model(
    PCW(),
    aero,
    λ,
    polarization_type,
    truncation_type,
    r_max,
    nquad_radius,
    wigner_A,
    wigner_B,
)
aerosol_optics_PCW = compute_aerosol_optical_properties(model_PCW)

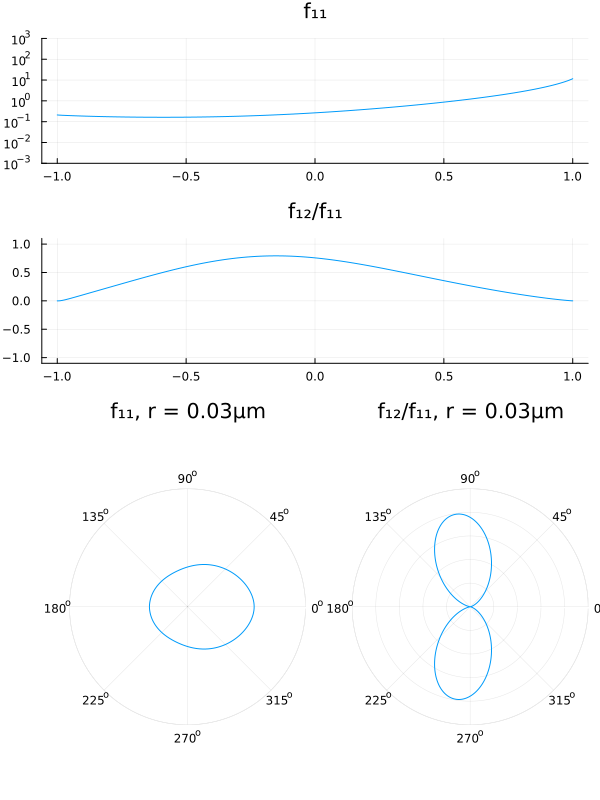

Optional animation (heavy) ​

Set ENV["VSMARTMOM_RUN_HEAVY_DOCS"]="true" before execution to enable.

julia
if get(ENV, "VSMARTMOM_RUN_HEAVY_DOCS", "false") == "true"
    fig = Figure(size=(600, 700))
    ax1 = Axis(fig[1,1], yscale=log10, ylabel="f₁₁", xlabel="cos(Θ)")
    ax2 = Axis(fig[2,1], ylabel="f₁₂/f₁₁", xlabel="cos(Θ)")
    record(fig, joinpath(@__DIR__, "scattering_radius_sweep.gif"), 0.03:0.10:4.3; framerate=5) do r
        empty!(ax1); empty!(ax2)
        local size_distribution_i = LogNormal(log(r), log(σ))
        local aero_i = Aerosol(size_distribution_i, nᵣ, nᵢ)
        local model_i = make_mie_model(NAI2(), aero_i, λ, polarization_type, truncation_type, r_max, nquad_radius)
        local optics_i = compute_aerosol_optical_properties(model_i)
        local smat_i = reconstruct_phase(optics_i.greek_coefs, μ_quad)
        lines!(ax1, μ_quad, smat_i.f₁₁)
        ylims!(ax1, 1e-3, 1e3)
        ax1.title = "f₁₁, r = $(round(r, digits=2)) μm"
        lines!(ax2, μ_quad, smat_i.f₁₂ ./ smat_i.f₁₁)
        ylims!(ax2, -1.1, 1.1)
    end
end

When run locally with VSMARTMOM_RUN_HEAVY_DOCS=true, this writes scattering_radius_sweep.gif next to the tutorial.
